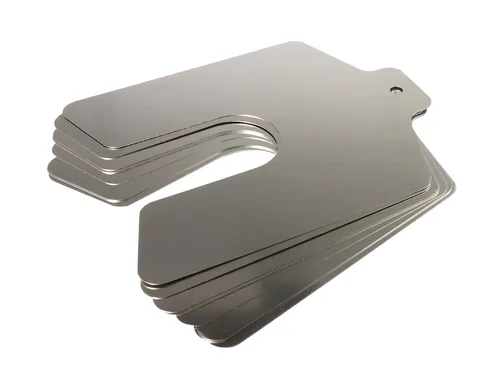

301 SST Precut Slotted Shim 0.70mm Thick, 100mm Wide x 100mm Long, Pack of 10, 81440

SGD $100.00

Precision Brand® pre-cut slotted shims are made from a 300 series stainless steel that resists rust and corrosion. Precut shims have tabs that makes shim placement easier and safer, while eliminating the need to place hands under the machinery during installation or removal of shim. Each motor shim is marked with thickness in metric. Precision Brand® Slotted Shim is the best way to solve alignment and leveling problems on motors, pumps, generators, and other plant machinery.

Product Details

Name

Details

SKU

:

30330353070

Materials

:

301 SST

Thickness Tolerance

:

+/- 0.02mm

Hardness

:

Full Hard

Standards Met

:

ASTM A-666

Weight (kg)

:

0.550

Manufacturer Part Number

:

81440

Manufacturer

:

Precision Brand

Country of Origin

:

USA

Thickness

:

0.70mm

Width

:

100mm

Size/Length for Product

:

100mm

Quantity Per Package

:

10 pcs

Slot Size

:

32mm

12 in stock
