countersunk Screw, M5 x 30mm, A2 SST, DIN7991, Pack of 50

SGD $15.00

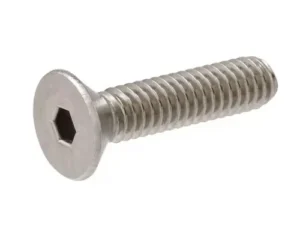

countersunk screws are used to create a flush and smooth surface by allowing the screw to sit level or below a material’s surface. This improves aesthetics, safety and functionality. Shown here are countersunk screws with a socket drive. These are fastened easily with an allen key.

Product Details

Name

Details

SKU

:

33533010057

Materials

:

A2 SST

Weight (kg)

:

0.240

Country of Origin

:

china

Size/Length for Product

:

30mm

Quantity Per Package

:

50 pcs

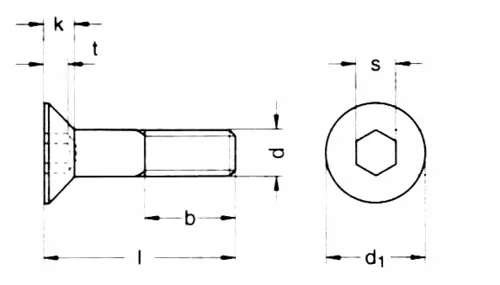

D1:

:

10mm

S:

:

3mm

Thread Size

:

M5

Pitch

:

0.8

Reference Standard

:

DIN7991

K:

:

2.8mm

T (min)

:

2.3mm

22 in stock
