D-Cut Shaft Collar, Wedge-lok With Threaded Holes and Lever, ID 35mm x OD 65mm, 20mm Long, 304 Stainless Steel, SCK3520STNS

SGD $64.00

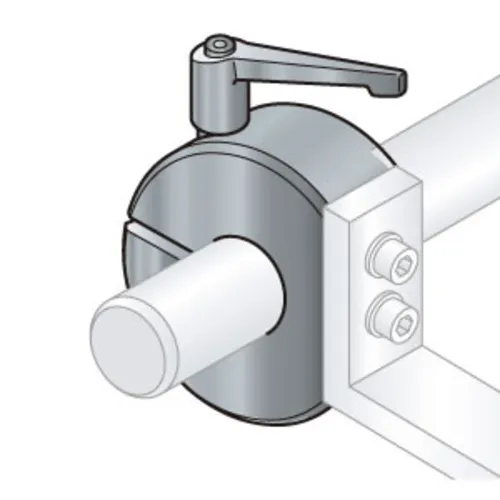

Wedge-lok shaft collars with clamping levers are simple to adjust for limited clamping spaces. The clamping lever is attached to the shaft collar and connected to an internal socket head cap screw. When the internal socket head cap screw is fastened, the Wedge-lok shaft collar secures itself onto the shaft

Product Details

Name

Details

SKU

:

33601040608

Materials

:

304 SST

Weight (kg)

:

0.373

Manufacturer Part Number

:

SCK3520STNS

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

20mm

Quantity Per Package

:

1 pc

Inner Diameter

:

35mm

Outer Diameter

:

65mm

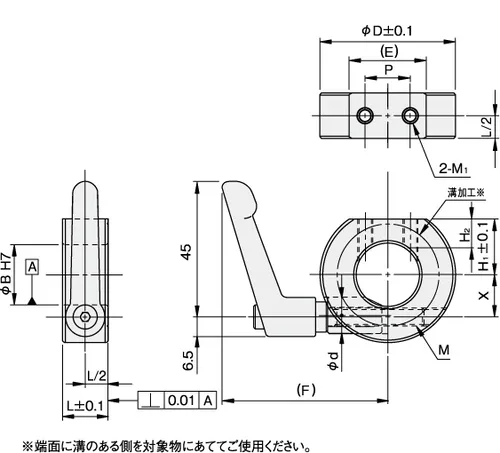

ØD

:

14.1mm

Screw Size PCD

:

None

D-Cut Section H1

:

26mm

D-Cut Section H2

:

10.7mm

D-Cut Section E

:

39mm

D-Cut Section M1

:

M6

D-Cut Section P

:

23mm

X

:

22.5mm

F

:

60.7mm

Tightening Screws M

:

M6 x 40mm

Lever Colour

:

Grey
