D-Cut Shaft Collar, Wedge-lok With Threaded Holes, ID 10mm x OD 35mm, 15mm Long, 304 Stainless Steel, SCK1015STN

SGD $22.00

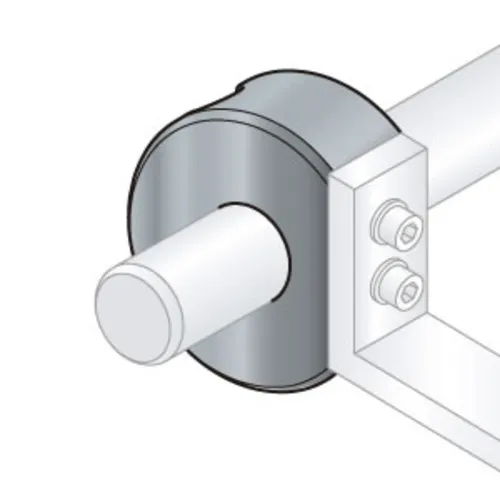

Wedge-lok shaft collars are simple to adjust for limited clamping spaces. The clamping effect uses an internal socket head cap screw which can be fastened with an allen key. When the internal socket head cap screw is fastened, the Wedge-lok shaft collar secures itself onto the shaft.

Product Details

Name

Details

SKU

:

33602040601

Materials

:

304 SST

Weight (kg)

:

0.094

Manufacturer Part Number

:

SCK1015STN

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

15mm

Quantity Per Package

:

1 pc

Inner Diameter

:

10mm

Outer Diameter

:

35mm

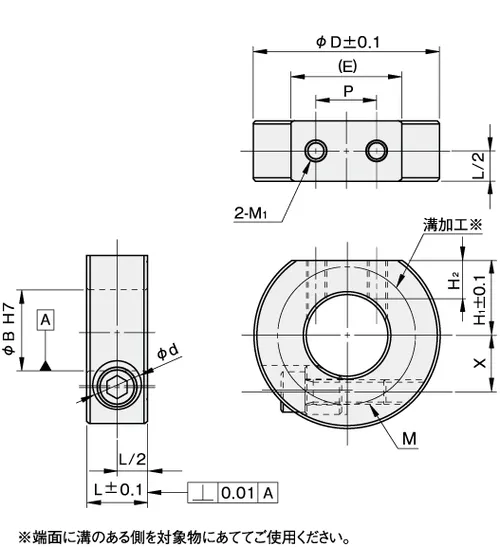

ØD

:

12.1mm

D-Cut Section H1

:

15mm

D-Cut Section H2

:

7mm

D-Cut Section E

:

18mm

D-Cut Section M1

:

M4

D-Cut Section P

:

10mm

X

:

9.5mm

Tightening Screws M

:

M6 x 25mm

Screw Holes M1

:

M4

0 stock, ships in 20 days
