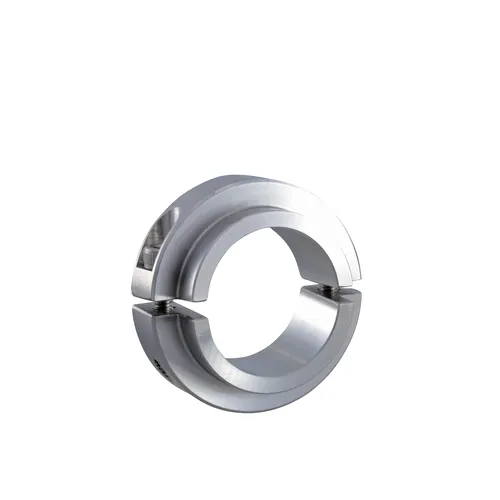

Split Shaft Collar for Bearings, ID 50mm x OD 75mm, 19mm Long, 304 Stainless Steel, SCSS5019SLB1

SGD $69.00

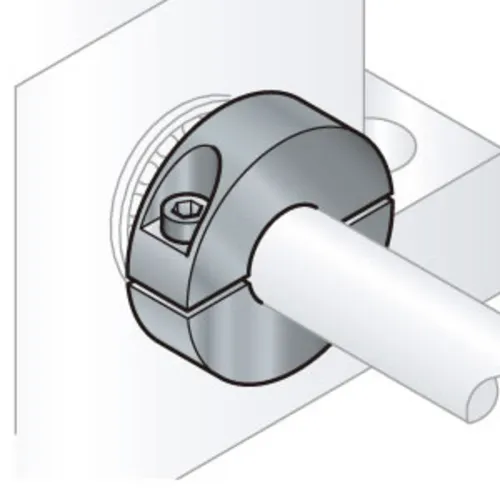

Available in a two-piece clamp design, split shaft collars are easily assembled and removed without the need to remove the shaft from its current operation. Split shaft collars can easily installed from one end and secured with two hexagon socket head cap screws on its sides.

Product Details

Name

Details

SKU

:

33605040133

Materials

:

304 SST

Weight (kg)

:

0.393

Manufacturer Part Number

:

SCSS5019SLB1

Manufacturer

:

Iwata

Country of Origin

:

Japan

Size/Length for Product

:

19mm

Quantity Per Package

:

1 pc

Inner Diameter

:

50mm

Outer Diameter

:

75mm

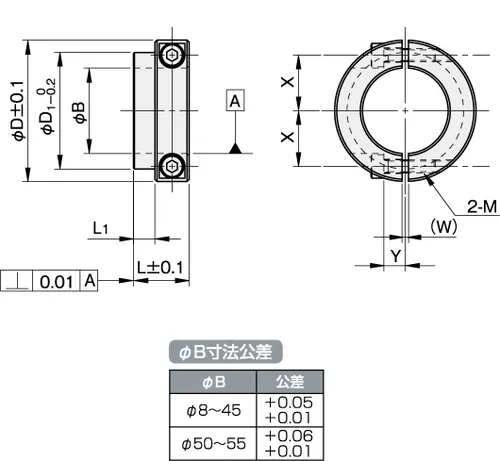

X

:

31.5mm

Tightening Screws M

:

M6 x 20mm

Corresponding Bearing Model

:

6010ZZ and 6910ZZ

Length L1

:

6mm

Thickness t2

:

56mm

W

:

2mm

Y

:

8mm
